Speaking of setting up a home theater, this is a result of the value of your friend Amway. Plus, you are also very fond of watching movies. Fortunately, you met Zhang Aunt during the renovation of the house, so you can make reasonable plans in advance. Here I would like to give everyone a splash of cold water first: If there is no wiring at home, then you have to think about whether or not you have to bear each time to move out of the equipment and connect the wire, and then focus on adjusting the screen, after finishing watching, you have to clean up and tidy up, otherwise The possibility of eating ash is relatively large, because you do not want to fight against people's natural inertia, you will fail miserably. First of all, borrowing pictures of friends, I just learned to set up a home theater according to this layout.
My projection is in the bedroom. Let me talk about why I am such a wonderful arrangement. In general, everyone is either in the living room or there is a dedicated audio and video room, and I'm not embarrassed, so the dedicated audio and video room is even better. The reason for not being in the living room is for the elderly and children to consider. Because the elderly are more convenient when watching TV with children, and there is no demand for light, the elderly and children do not like the dark environment. When family and friends come together, they can't be black and they don't look at the projection together. So after setting up a 65-inch TV in the living room, a projection was set up in the bedroom in order not to repeat. The advantage of this in the bedroom is that it saves the money to buy a TV set, and it is possible to have a separate look at his favorite movie with his wife, and the privacy is relatively high. Of course, this arrangement is relatively small.
Fortunately, for home theater, I am also a halfway monk, so the professional thing is also a little knowledge, know that Aunt Zhang is a lot of gods, it does not show ugliness, or talk about their own set up a home theater course.
wiringWhen the house is renovated, it is ready to be projected. The advantage is that it can be arranged in advance. So first of all, plan the location of each device, then measure the distance to buy a 10-meter HDMI cable. The father buries the wall with a thicker tube. Here is a small suggestion
Before you buy the wire, you must try it before you pre-bury it, and don't bury it until you find it is bad.
After the wire is embedded in, it is best to use a plastic bag to wrap the ends of the wire and place the terminal damaged or dust by the decoration worker.
Calculate the length of the line when the two sides must leave a 30 cm margin, in case of need.
If you do not trust quality, you can bury two. I am more confident about the quality of wire, so I buried one. If you have the same requirements as me but are not too high, then the 1.4 specification is enough.
I installed the switch box in the place where the wire outlet was arranged, and then used the hole cutter to drill holes in the switchboard, which was beautiful. The same layout audio line is also used this method.
In arranging the projection power line, I placed a set of lines ahead of time in the position of the screen slot and installed the projector. There was no socket at the projector, but the power line was cut off, and he received him the reserved power. Line and then wrapped with electrical tape, so that the power cord will not be wrapped long, it is more ugly. Then a total power switch is placed on the bedside so that the screen and projector can be turned off in time when they are not needed.
Here I would like to remind the classmates who have just started. When you decide on what kind of projector you would like to buy, the official website or shopping website will have corresponding size reference drawings for you. I bought Acer’s H5380BD, which was about 2,500 yuan at that time. Purchased from Suningyi. Now all major businesses are off the shelf.
This projector is very cost-effective, support 720P resolution, close to see if you can almost, but stand 2 meters away, unless you are eye-catching, anyway, I can not see what is the difference. At the same time it also supports 3D playback, the interface is also complete, comes with the speaker, the effect you know. As for the rainbow eye, I don't know what it means, so I don't know if it has any. In short, it is competent as an entry-level machine.
I myself calculated that the room is about 3.6 meters wide, minus the length of the fuselage, and there are 3.2 meters left. According to the reference map, it should be more than 90 inches.

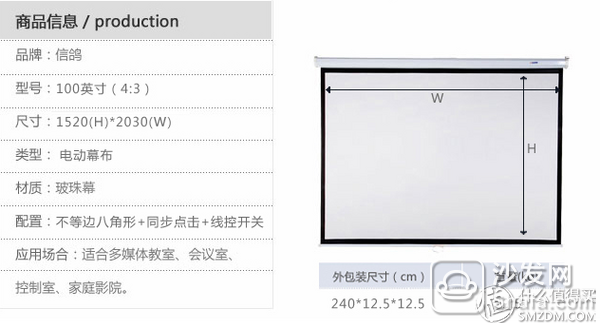

After determining the projection size, he initially wanted to buy a 16:9 100-inch curtain. Then he decided to buy a 4:3 curtain after he wanted to use a large black border on the 16:9 curtain. So when I was decorating, I used a projector to try it out. I found that the size of the cast was up to 2 meters wide, so I finally bought the most common 100-inch 4 from Jingdong based on the cost of two meters wide. :3 The price of curtains is relatively cheap, and when it is used by white walls, because I have already voted for a white wall, I am not necessarily a better person. I feel that the effect is acceptable.
But later found that the curtain fell down from the TV cabinet. When watching the movie, the neck looked a little upturned. In order to consider the neck, she later made several S-shaped hooks on Taobao, so that the curtain fell down just on the TV cabinet. Now, the neck can still accept. The only downside is that after the curtain is closed, there is still a little leakage, and I can still endure it without obsessive-compulsive disorder.
In the later period, he bought a remote control device on Taobao. According to the instructions, he realized the remote control. You can hide the remote control device in the ceiling
194220b6a921.jpg" />

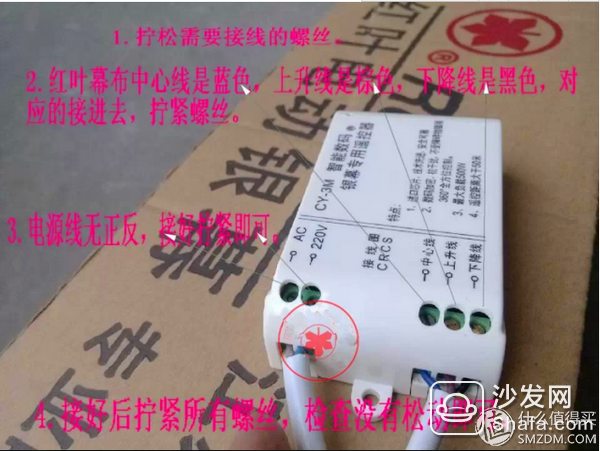

This is a wiring diagram from the Internet. It is basically universal and has no difficulty.
Once the screen size is set, the screen slot will be reserved when the ceiling is suspended according to the width of the screen. Note that the width of the screen should be greater than the width of the screen, and a certain amount of space must be reserved for the screen slot. The amount of allowance prevents the loading of the curtain when it is installed.
Another point is that the curtain can be a certain distance away from the wall. My goal is to set aside 15 centimeters to prevent late purchase of a flat-screen TV. However, because the electrician designed the socket, mistakes still occurred. As a result, the wires were exposed on the top of the TV cabinet. The space reserved for the TV could be used to place a frame in the future so that the screen would not affect each other. This is also an accident. Surprise.
After everything is properly installed, the projector's rack can be bought online to prepare for commissioning.
I bought this kind of white, I must first take the projector to try to project the size of the screen to see the appropriate size, and then determine the position of the rack, because this type of rack after the fixed period can not be changed. Use expansion screws and fix it.
Projection equipment has been solved, then you should select an entry-level 5.1-channel home theater, because it is in the bedroom, so the kind of large-scale sound will not be considered, mainly to a small size, so it is fancy Yamaha, at the time, 1099 in Yi Xun entered Yamaha's NS-P40 suit. Himself with a Yamaha V377 amplifier, was purchased at 1499 Jingdong.
Because they did not want to make a hole in the wall, they did not take the method of wall hanging and placed it directly on the nightstand or TV cabinet. The amplifier could be hidden inside the TV cabinet. The connected line leaked out, not so beautiful, ready to buy a painting later or potted plants can cover.
The playback device originally wanted to set up a NAS. It also took a long time to study at Aunt Zhang, and she was prepared to enter a double 11 and get into a helpless wife. He would not be able to approve the budget and wait for the opportunity to think about it in the future. Now use it. Watching a movie on a notebook is also contentment. It is always troublesome to plug and play.
This is my simple start home theater composition, the cost is probably: projector (2500) + rack (85) + curtain (284) + remote control device (31) + wire (80 +75) + amplifier (1499) + audio (1099) = 5653 yuan, basically able to meet my needs at home watching a large film. I hope to help those who are still hesitant. Thank you all for watching.
